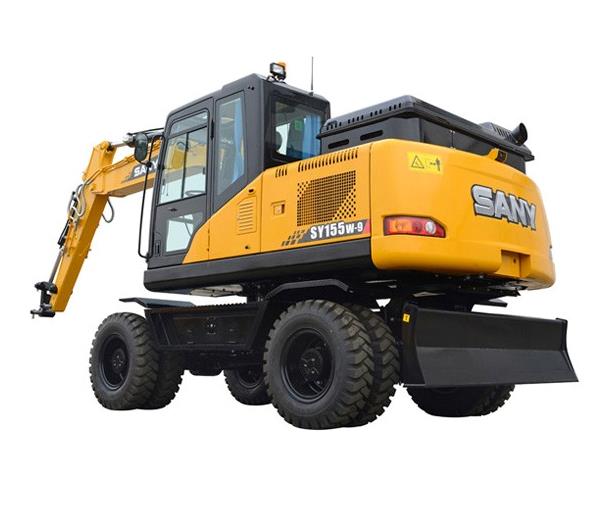

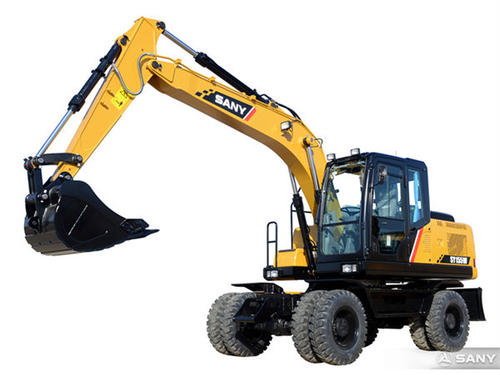

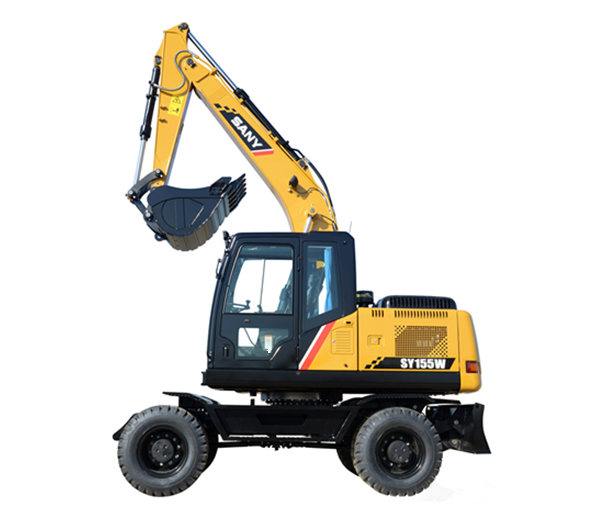

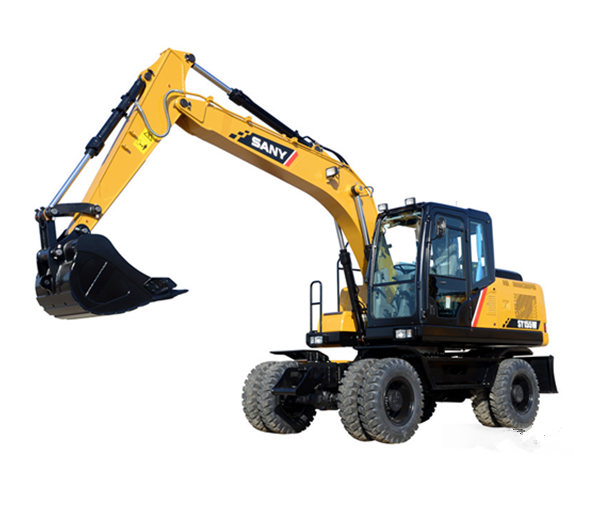

SY155W

15 Tonne Wheel Excavators

Thanks to its compact dimensions, the SANY SY155W wheel excavator is ideal for use in tight spaces such as inner-city construction sites. This machine is extremely economical to operate thanks to its very high productivity, exceptional driver comfort and low consumption data.

Rated Power

120kW/2000rpm
Operating Weight

13,500 kg
Bucket capacity

0.58 m³

Chat with us Leave a message Download

Specifications

Technical data
Overall length	7690mm
Overall width	2490 mm
Overall height	3200 mm
Min.Ground Clearance	360 mm

Boom length	4600 mm
Bucket arm length	2100 mm
Bucket capacity	0.58 m³

WEIGHT
Total weight	13500 kg

WORKING RANGE
Max. digging height	8600 mm
Max. digging depth	4800 mm
Min. slewing radius	2400 mm
Max. height at min. slewing radius	6800 mm


ENGINE
Model	Isuzu 4HK1
Rated power	120 kW/2000rpm
Travel speed	10\37 km/h

Benefits & Features

+ Quiet and low-vibration engine

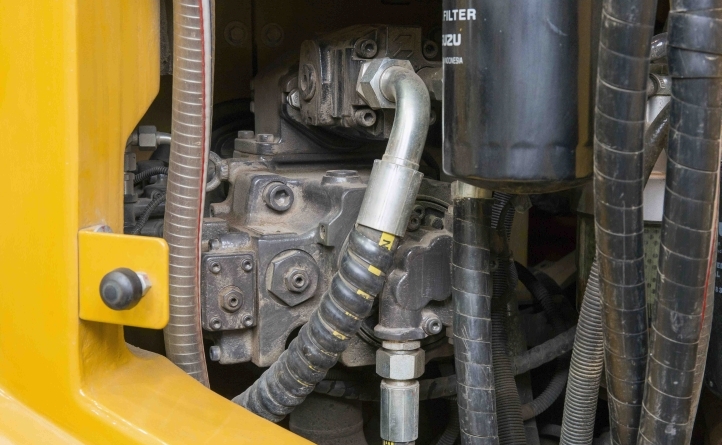

+ Efficient, powerful load-sensing hydraulic system
+ Responsive, precise control
+ Ergonomic, comfortable seat
+ Clear instruments and large, high-resolution colour display
+ Optimum visibility
+ Powerful automatic air-conditioning system and heating
+ Standard connections for commercially available accessories
+ Low weight and compact dimensions
+ All cladding elements made of metal
+ All important maintenance points are very easily accessible
+ ROPS/FOPS-certified for safety in operation
